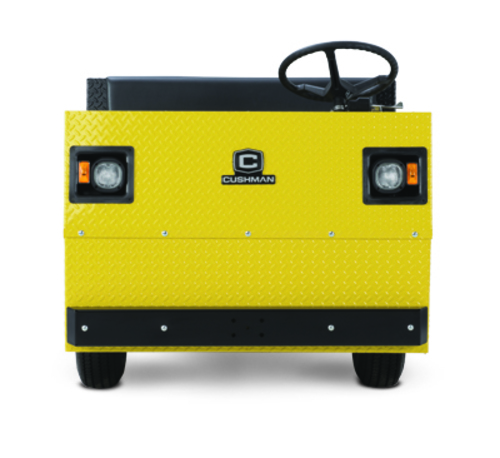

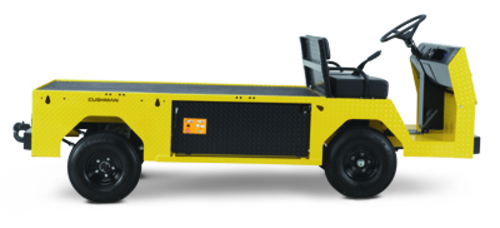

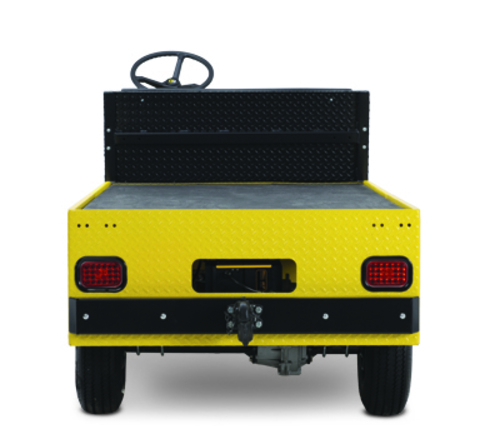

CUSHMAN TITAN XD - 48V AC ELECTRIC

PRICE

From $32,995

The Titan XD is a force to be reckoned with - featuring AC power and IntelliBrake technology, it has the stamina required to carry load after load. With impressive towing performance up to 8,000 -lbs and hauling strength up to 3,000 -lbs, it's easy to see how the Titan XD is blue-collar grit wrapped in diamond-plated steel.

8 x 6V Trojan T105 Deep Cycle Batteries
48V Delta Q DC On-Board Charger
AC Motor
2 Passenger with Heavy Duty Plywood Plastic Non Slip Laminate
2 x Swing Out Battery Trays
Head, Tail and Brake Lights
Turn Signals
Front & Rear Bumpers,
4 Wheel Hydraulic Disc Brakes
Intelli Automatic Park Brake
Hour Meter,
Welded Steel with DuraShield coating Frame & Body
Body Finish painted Diamond pattern
DC Converter
Horn and Reverse Beeper
State of Charge Meter
Operator Presence Switch
Internal Towing Bracing

Foam Filled Tyres
Pintle Hitch (requires rear bumper)
Clevis Hitch (requires rear bumper)
Type EE Certification
Lithium Ion Battery Upgrade
Hand Park Brake
Rotating Amber Strobe
Box Sides and Tailgate - Steel or Alluminium
Long Top Assembly with Fold down windshield
Short Top Assmebly with Fold down windshield
DFK Hard Cab with Door, Windscreen and Wipers
Steel Cargo Deck
Tow Hitch and 50 mm Tow Ball
Custom Colour

Dimensions

Overall Length: 290 cm
Overall Width: 113 cm
Overall Height : 119 cm
Height with Optional Cab: 183 cm
Wheel Base: 170 cm
Front Wheel Track: 96 cm
Rear Wheel Track: 96 cm
Ground Clearance (at differential): 12 cm
Cargo Box Capacity: 1180 Kg
Cargo Box Material: Weather Proof Deck Board

Power

Power Source: 48 Volts
Horsepower: 16.8 hp ( 12.5 kW) Peak
Electric System: 48 Volt
Battery (qty/type): Eight, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48v On-board, Delta Q 120V AC, UL & CSA
Speed Controller: 450 Amp AC
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1

Performance

Seating Capacity: 2 Person
Dry Weight (without battery): 572 Kg
Curb Weight: 796 Kg
Vehicle Load Capacity: 1361 Kg
Bed Load Capacity: 1180 Kg
Towing Capacity: 3628 Kg
Outside Clearance Circle: 6.47 m
Speed (level ground): 21 kph ± 0.8 kph Tow Mode: 8.1 kph ± 0.8 kph

Steering & Suspension

Steering: Rack and Pinion
Front Suspension: Independent, Transverse Leaf Spring Shocks
Rear Suspension: Leaf Springs and Shock Absorbers
Service Brake: Front Hydraulic Disc, Rear Hydraulic Drum
Parking Brake: Intellibrake Automatic Parking Brake
Tyres: 5.7 x 8 (Load Range C)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Body & Finish: Diamond Plate Patterned, Poly Primer & Acrylic
Standard Colour: Safety Yellow
Optional Colour: Flame Red, Hunter Green, Arctic White
Available Seat Colours: Black
